Class II biological safety chambers
Class II biological safety chambers are ideal laminar flow chambers to protect the operator, the product and the environment. The cabin operates with negative pressure, preventing the release of contaminated air into the environment. Designed to offer total protection, the air circulating inside the chamber is filtered by a HEPA filter (99.999% efficiency), and the fresh air is also filtered through another HEPA filter. They also have an air speed compensation system before the resistance increases by the filter and alarms in case of electrical supply failures. These cameras are used in different areas of research, such as microbiology, virology and genetics and in the various service laboratories, where moderate biological risk samples are handled.
Class II biological safety chambers are ideal laminar flow chambers to protect the operator, the product and the environment. The cabin operates with negative pressure, preventing the release of contaminated air into the environment. Designed to offer total protection, the air circulating inside the chamber is filtered by a HEPA filter (99.999% efficiency), and the fresh air is also filtered through another HEPA filter. They also have an air speed compensation system before the resistance increases by the filter and alarms in case of electrical supply failures. These cameras are used in different areas of research, such as microbiology, virology and genetics and in the various service laboratories, where moderate biological risk samples are handled.

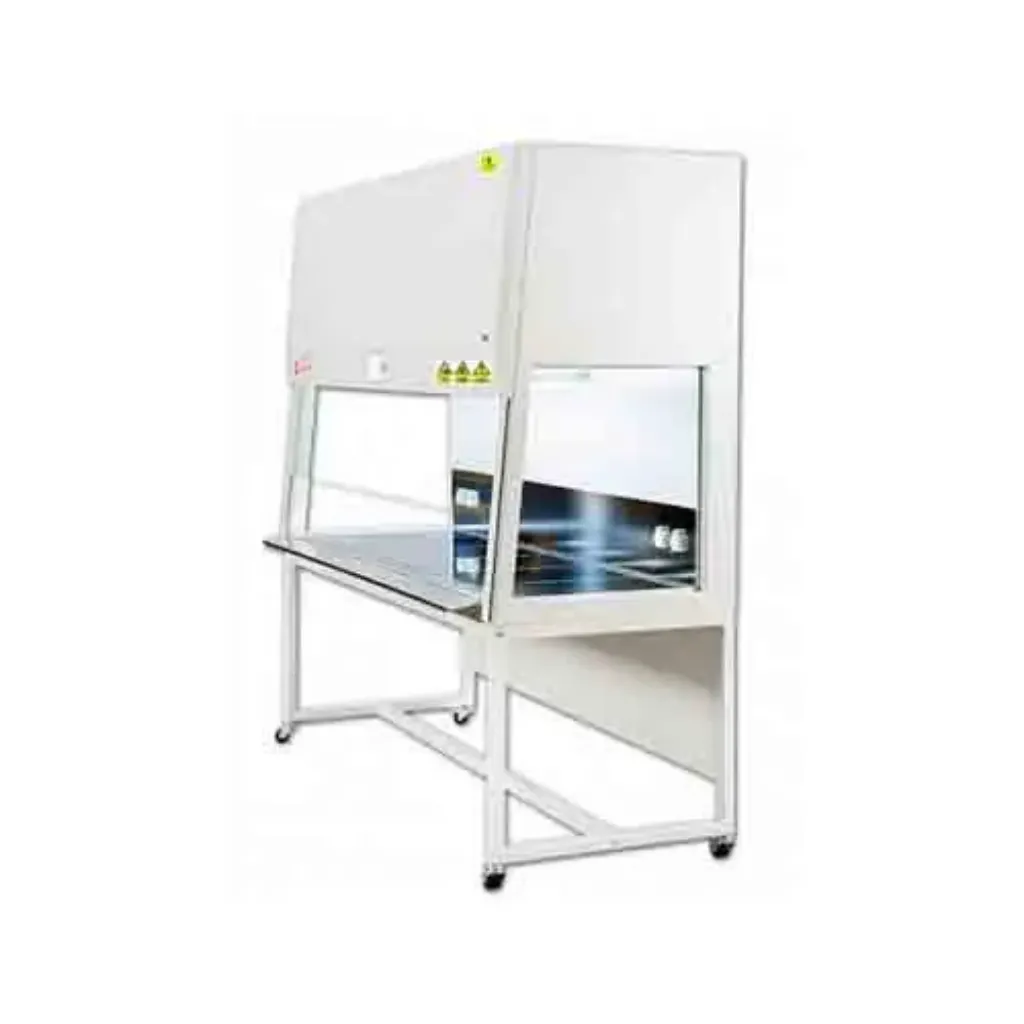

CLASS II SAFETY LAMINAR FLOW CHAMBERS
Class 2 biological safety camera with microprocessor control and color touch screen. Front window in frameless and electric double tempered glass, inclined at an angle of 8°, with the possibility of completely isolating the work area. The work area is divided into several removable, perforated stainless steel panels. Self-test and error detection system with visual and audible alarms. Automatic filter compensation ensures constant and safe airflow speed in the chamber. Each chamber has an IQ/OQ certificate, which consists of an integrity report of the filter speed with the airflow test, and complies with the European standard PN-EN 12469, certified by an independent certification body and has the manufacturer's CE declaration.
Specifications:
- Sterilization with UV lamp and white light for lighting;
- Vertical laminar flow.
- Air flow: 30% extraction / 70% Recirculation;
Hour and UV light timer;
- Vertical laminar air flow velocity from 0.2 to 0.8 m/s;
- 3 HEPA filters with 99.999% efficiency for particles with diameter > 0.3 µm (class H14 according to EN1800);
- Noise level lower than 56 dB;
- Adapted for the decontamination method by hydrogen peroxide (H2O2);
- Includes: 2 sockets inside the chamber, gas valve, retractable armrest and table to support the chamber with wheels. Optional: vacuum valve, activated carbon filter, air valve;
- Dimensions of the work surface (WxDxH): 188 x 62 x 71 cm (there are models with different dimensions);
- Exterior dimensions (WxDxH): 196 × 79 × 198 cm.
CLASS II SAFETY LAMINAR FLOW CHAMBERS
Class 2 biological safety camera with microprocessor control and color touch screen. Front window in frameless and electric double tempered glass, inclined at an angle of 8°, with the possibility of completely isolating the work area. The work area is divided into several removable, perforated stainless steel panels. Self-test and error detection system with visual and audible alarms and automatic filter compensation ensures constant and safe airflow speed in the chamber. Each chamber has an IQ/OQ certificate, which consists of an integrity report of the filter speed with the airflow test, and complies with the European standard PN-EN 12469, certified by an independent certification body and has the manufacturer's CE declaration.
Specifications:
- Sterilization with UV lamp and white light for lighting;
- Vertical laminar flow.
- Air flow: 30% extraction / 70% Recirculation;
Hour and UV light timer;
- Vertical laminar air flow velocity from 0.2 to 0.8 m/s;
- 2 HEPA filters with 99.999% efficiency for particles with diameter > 0.3 µm (class H14 according to EN1800);
- Noise level lower than 60 dB;
- Adapted for the decontamination method by hydrogen peroxide (H2O2);
- Includes: 2 sockets inside the chamber, gas valve, retractable armrest and table to support the chamber with wheels. Optional: vacuum valve, activated carbon filter, air valve;
- Dimensions of the work surface (WxDxH): 188 x 62 x 71 cm (there are models with different dimensions);
- Exterior dimensions (WxDxH): 196 × 79 × 198 cm.
CLASS II SAFETY LAMINAR FLOW CHAMBERS
Class 2 safety laminar flow chamber with microprocessor control and advanced system of audible and visible alarms on a large LED display, where you can also easily monitor the speed of the air flow. It has an automatic speed compensation system against clogged HEPA filters. Filtered air is partially recirculated to extend the life of HEPA filters. UV light resistant laminated glass windows and fixed front opening height to prevent contamination from excessive window opening. Each camera is TUV Nord certified according to the European standard EN12469:2008.
Specifications:
- Sterilization with UV lamp and LED light for lighting;
- 15 min UV light timer;
- Airflow speed continuously controlled and maintained at 0.4± 20% m/s;
- Double HEPA filter with 99.999% efficiency for particles with diameter ≥ 0.3 µm (class H14 according to EN1822);
- Noise level lower than 60 dB;
- Available accessories (not included) such as: table to support the chamber, vacuum valve and gas valve, front closure with UV lamp, HEPA filter and HEPA filter for air outlet;
- Dimensions of the work surface (WxDxH): 119 x 60 x 65 cm (there are models with different dimensions);
- Exterior dimensions (WxDxH): 136 × 79.5 × 140 cm.
