Electrodes - Oxygen Meters

Equipment suitable for analysis in outdoor environments, in aquaculture, sewage treatment and monitoring of environmental protection and also used in the area of ​​scientific research and education. Compact, portable and benchtop dissolved oxygen and temperature meters.


BENCH DISSOLVED OXYGEN METER
Portable temperature and dissolved oxygen meter, waterproof, with self-calibration system, self-diagnosis and salinity, temperature and pressure compensation. Digital touch-screen reading of measurement values, series, temperature, ATC (automatic temperature compensation) or MTC (manual temperature compensation) status, measurement date and time. PC connection with USB or Bluetooth port.

Specifications:
- OD (dissolved oxygen) measurement up to 90 ppm, with an accuracy of ±0.5 fs OD;
- O2 saturation range from -0.1 to 600%, with an accuracy of ± 2.0% fs;
- Temperature measurement from -10°C to 110°C, with an accuracy of ±0.1°C;
- Includes electrodes, probes, support arm and calibration solution;
- Dimensions (WxLxH): 16 x 19 x 7 cm.

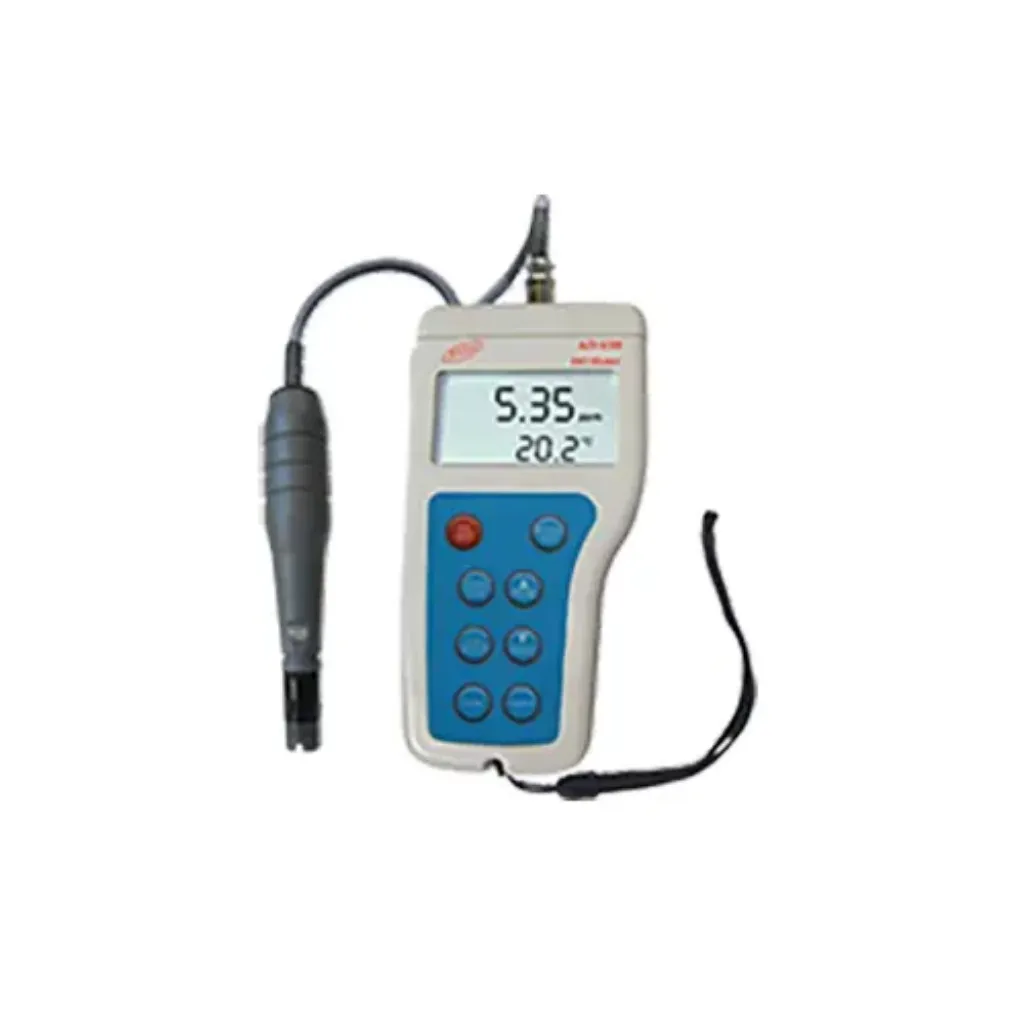

PORTABLE DISSOLVED OXYGEN METER
Waterproof portable temperature and dissolved oxygen meter designed to provide accurate laboratory results even under the most severe working conditions. Automatic temperature compensation and setup mode for altitude and salinity compensation factors. Allows O2 calibration with standard buffers (0 and 100%) or a custom buffer (> 20%). Battery operation up to 200 hours and with automatic off after 5 min.

Specifications:
- OD (dissolved oxygen) measurement up to 45 ppm (mg/L), with an accuracy of ±1.5 fs OD;
- Temperature measurement up to 50°C, with an accuracy of ±0.5°C;
- Includes galvanic dissolved oxygen probe and integrated temperature sensor and electrolyte solution;
- Dimensions (WxLxH): 9.6 x 18.8 x 7 cm.


BENCH DISSOLVED OXYGEN METER
Temperature and dissolved oxygen meter with self-calibration system, self-diagnosis and automatic compensation of salinity, temperature and pressure. Manual (MTC) or automatic (ATC) temperature compensation system. Automatic electrode recognition system with connection to a 3.5 mm connector and different electrodes can be installed to also test pH and conductivity. LCD screen with simple and intuitive software. PC connection with USB port and microUSB port. Battery with automatic off after 10 min.

Specifications:
- OD (dissolved oxygen) measurement up to 90 ppm, with an accuracy of ±0.5 fs OD;
- O2 saturation range up to 600%, with an accuracy of ± 2.0% fs;
- Temperature measurement from -10°C to 110°C, with an accuracy of ±0.5°C;
- Includes electrodes, support arm and calibration solutions;
- Dimensions (WxLxH): 16.5 x 9 x 3.2 cm.


PORTABLE DISSOLVED OXYGEN METER
Portable temperature and dissolved oxygen meter with self-calibration system, self-diagnosis and automatic compensation of salinity, temperature and pressure. LCD screen with simple and intuitive software. Battery with automatic off.

Specifications:
- DO measurement (dissolved oxygen) up to 20 ppm, with an accuracy of ±0.1% fs (electrode) and ±0.4% fs (instrument);
- O2 saturation range up to 200%, with an accuracy of ± 2.0% fs;
- Temperature measurement up to 100°C, with an accuracy of ±0.5°C;
- Includes electrodes, probes, rigid carrying case and calibration solutions;
- Dimensions (WxLxH): 6.5 x 12 x 3.1 cm.
