ELISA Plate Reader

ELISA readers correspond to specific spectrophotometers for reading microplates capable of measuring and comparing the amount of light absorbed, transmitted or reflected by a given sample. Essential in this technique, the advantage of this equipment is the amount of samples that allow reading to obtain the result in a short time. Depending on the brand and model, they vary between 1 and 12 reading channels.
SKU: BIOB-601101

Register or Log In in order to request a quote

Register Login

Products specifications
Sizes
ELISA readers correspond to specific spectrophotometers for reading microplates capable of measuring and comparing the amount of light absorbed, transmitted or reflected by a given sample. Essential in this technique, the advantage of this equipment is the amount of samples that allow reading to obtain the result in a short time. Depending on the brand and model, they vary between 1 and 12 reading channels.

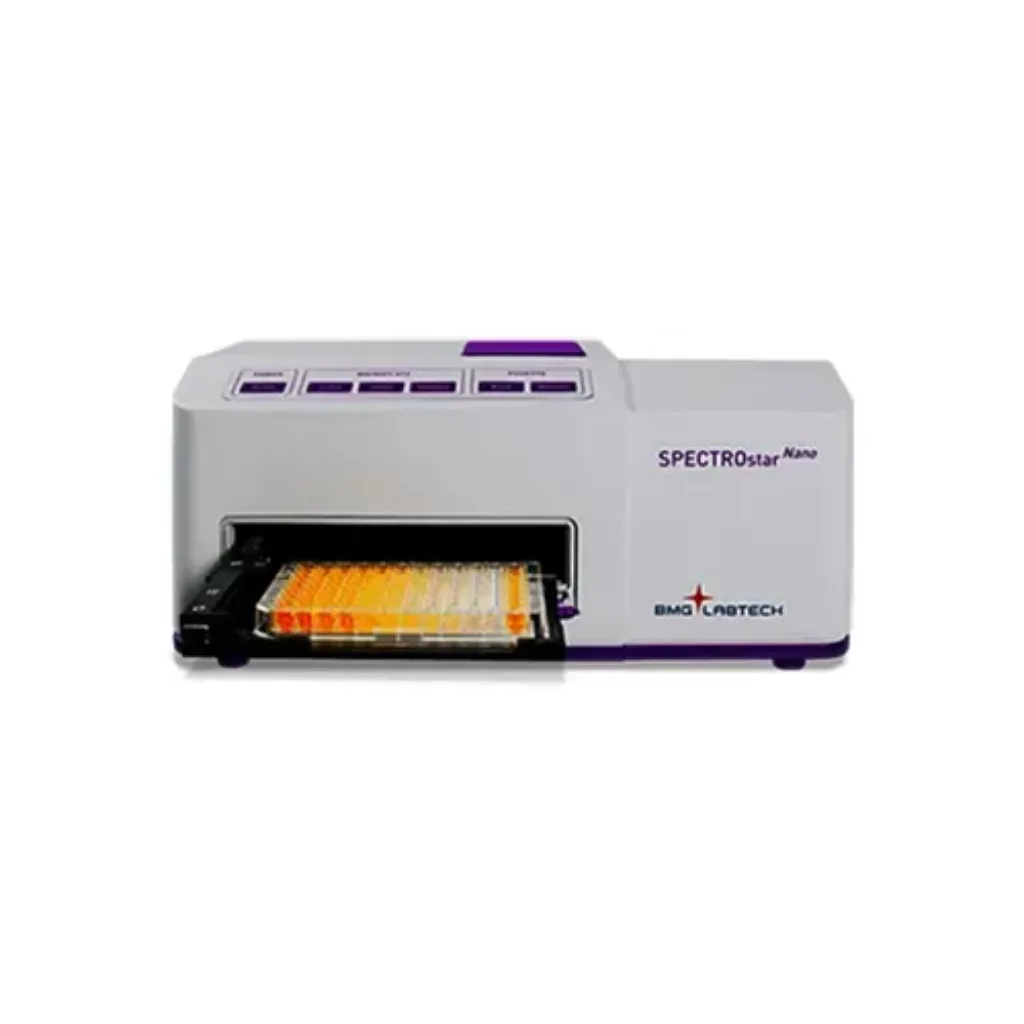

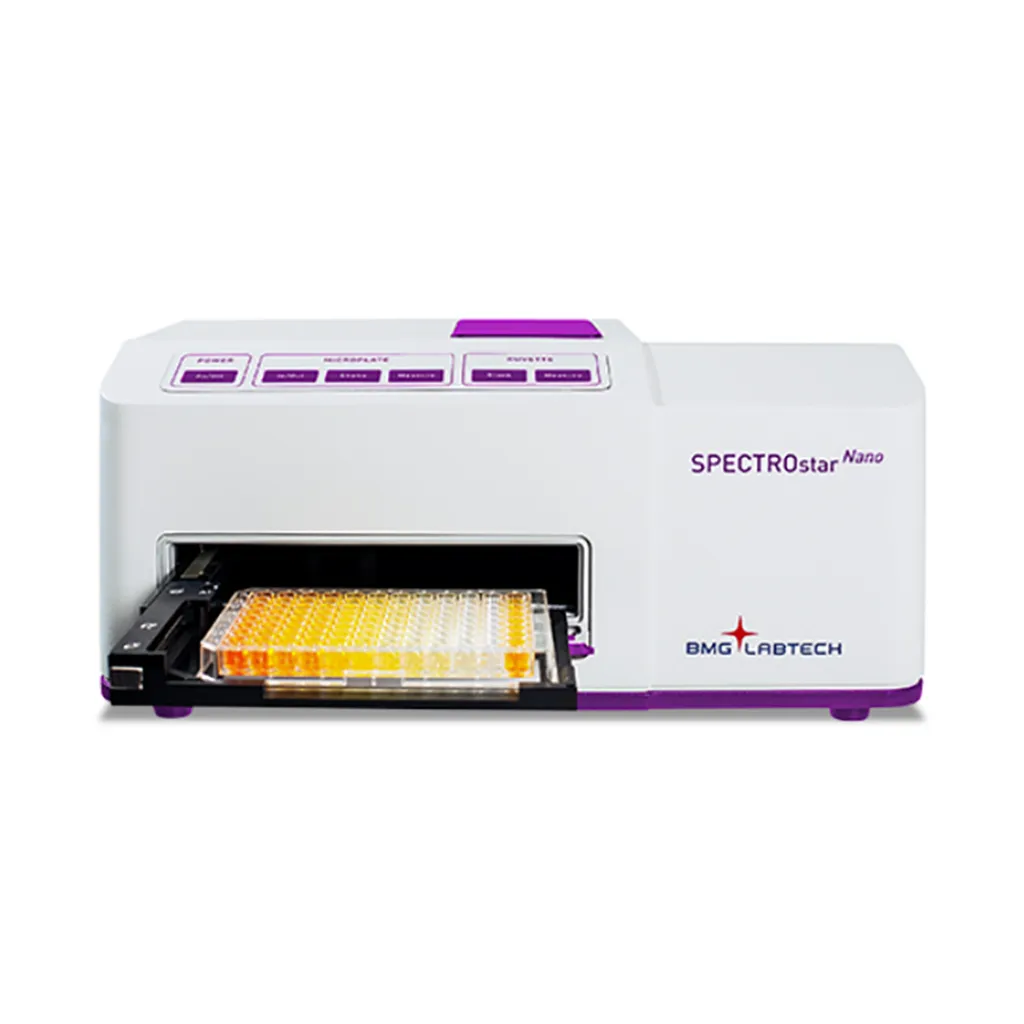

ABSORPANCE PLATE READER
Sensitive, versatile and advanced equipment, ideal for applications such as ELISA immunoassays, enzyme activity and microbial growth assays, quantification of RNA, DNA (260/280 nm) and proteins. High-performance dual-beam spectrophotometer with cooled dual detection (CCD), for UV/Vis spectrum and automatic, ultra-fast absorbance reading for microplates (from 6 to 384 wells, 1536 optional), cuvettes (standard or micro) and samples of volume up to 2 µl. Spectral scans of a well in less than 1 sec. and multi-color, up to 8 wavelength, instantaneous readings. Uniform incubation up to 45°C (up to 60°C optionally) with hot plates above and below the microplate. Working together with a computer, the MARS reader control and analysis software includes macros for quick calculations and allows, in an intuitive and easy-to-use way, to define protocols, visualize data in real time, perform multiple calculations, subtract blanks, among others. many other functions.

Specifications:
- Microplate reader from 6 to 384 wells, cuvettes and samples of up to 2 µl;
- UV/Vis wavelength range: 220 - 1000 nm;
- Reading speed, full spectrum, < 1 sec/well;
- Photometric range: 0 – 4 Abs.;
- Bandwidth of 1 nm;
- Accuracy < 1% to 2 Abs.;
- Linear, orbital and double orbital agitation of samples;
- Uniform incubation from ambient temperature +3°C to 45°C, optionally up to 60°C;
- Dimensions (WxLxH): 36 x 50 x 16 cm.


96 WELL MICROPLATE READER
96-well microplate reader, controlled by an external computer with software (not included). Ultra-fast readings of absorbance, transmission, concentration and qualitative studies. Self-diagnosis system and alarms. It has 8 optical channels for 5-second reading per 96-well plate. Built-in agitation with selectable speed and time.

Specifications:
- 96-well microplate reader;
- UV/Vis wavelength range: 340 - 750 nm;
- Filters included: 340, 405, 450, 492, 630 nm (ability to install 3 additional filters);
- Photometric range: 0.000 – 4.000 Abs.;
- Bandwidth of 8 nm;
- Resolution of 0.0001 Abs.;
- Uniform incubation from ambient temperature +5°C to 45°C;
- Built-in agitation with selectable speed and time

Reading speed of 5 seconds on 96 wells.


ULTRA FAST MICROPLATE READER 96 WELLS
96-well microplate reader, with control through an internal microprocessor with touch screen or an external computer with software. Ultra-fast, 3-second, accurate readings of single wavelength or multiple wavelengths and absorbance on 96-well microplates. Built-in agitation with selectable speed and time. Self-diagnosis and self-positioning system.

Specifications:
-
- 96-well microplate reader;
- Wavelength range: 400 - 750 nm;
- Optical filters: 4 standard filters 405, 450, 492, 630 nm (capacity to install up to 4 additional filters);
- Photometric range: 0.000 - 4.500 Abs.;
- Resolution of 0.0001Abs.;
- Linearity: ±0.5% or <0.025 Abs.;
- Photometric repeatability: <0.1% or ±0.0025 Abs.;
- Read speed of 3 seconds in 96 wells;
- Dimensions (WxLxH): 52.5 x 42 x 26 cm.
