Inverted Microscopes and Phase Contrast

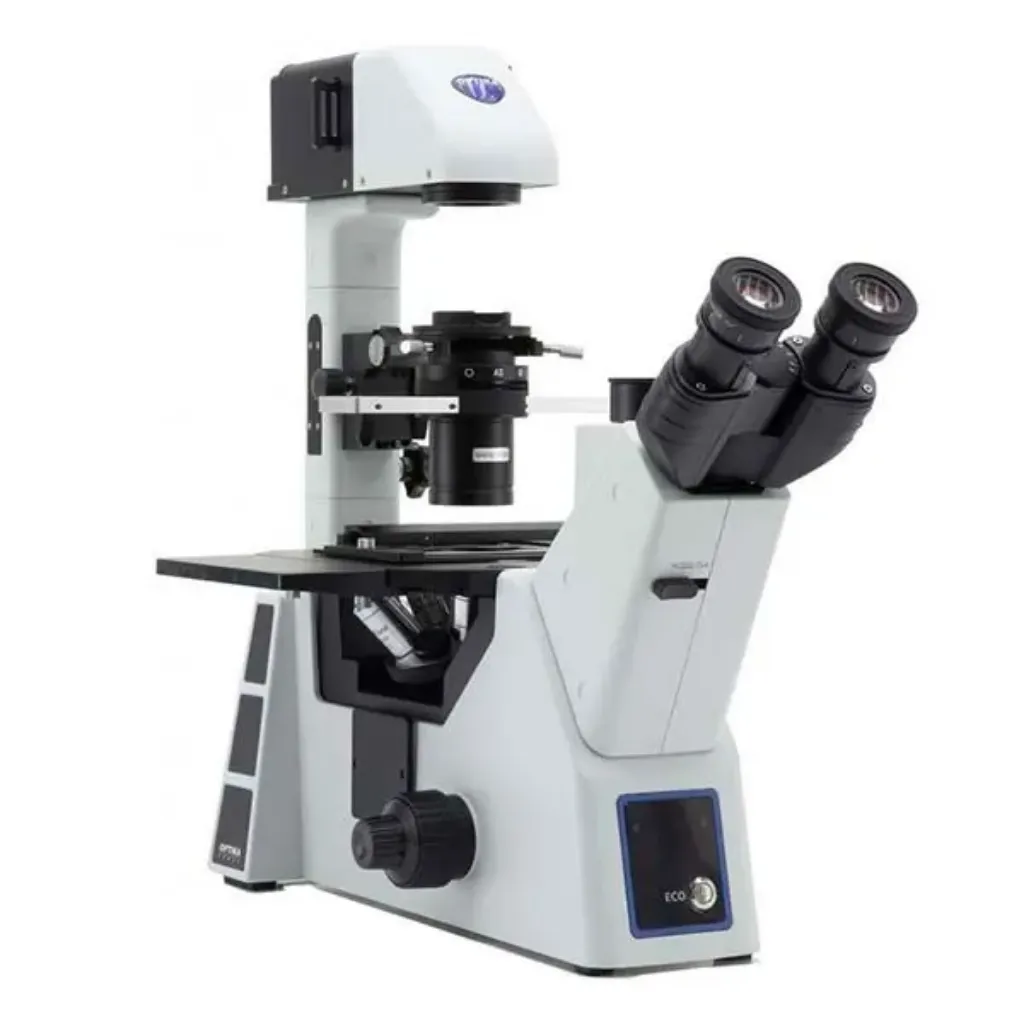

INVERTED BRIGHT FIELD/PHASE CONTRAST TRINOCULAR MICROSCOPE
- New inverted research microscopes, which provide brilliant images for the observation of living cells, organisms and various other samples in large flasks, combining brightfield, darkfield and phase contrast techniques, in order to satisfy more users demanding. They feature adjustable Köhler condensers, convenient ergonomic controls, and significant unique features such as the highest FOV (field of view measurement, 24 mm) available in an inverted microscope. Availability of various planochromatic and semi-apochromatic IOS objectives. For fluorescence available high quality semi-apochromatic lens. Presence of ECO button allowing automatic off after 20 minutes of inactivity. Optional accessories for professional digital image analysis and software to simplify workflow.

Specifications:
- Observation methods: bright/dark field, phase contrast, LED fluorescence;
- Source of transmitted light: X-LED, with energy consumption of 8 W;
- Incident light source: FL LED with blue, green and UV filters, 100 W halogen lamp;
- Trinocular heads with 45° inclination;
- Fivefold revolver, inverted and rotating on ball bearings;
- Eyepieces: 10x/ 24 mm;
- Planochromatic and semi-apochromatic IOS objectives;
- Default Magnification: 50x-1000x;
- Condenser: Abbe N.A. 0.50, removable with iris diaphragm and slide for phase contrast.


INVERTED BRIGHT FIELD/PHASE CONTRAST TRINOCULAR MICROSCOPE
- Inverted microscopes for observing cells or living organisms at the bottom of large containers in more natural conditions than on a glass slide. It includes a version for simultaneous phase contrast and brightfield, designed as an ideal solution for fast and reliable routine inspections. Ensure superior viewing of phase contrast and brightfield with a high-efficiency 3 X-LED array. Full chromatic correction and 22 mm field of view planarity. Improved image quality, high contrast and brightness. All models equipped with IOS optics and phase contrast objectives are available for examining clear specimens. Optional accessories for professional digital image analysis and software to simplify workflow.

Specifications:
- Observation methods: bright/dark field, phase contrast and LED/HBO fluorescence;
- Source of transmitted light: X-LED, with energy consumption of 8 W;
- Incident light: FL LED/HBO with blue and green filters, 18 W LED, 100 W halogen lamp;
- Trinocular heads with 45° inclination;
- Inverted quintuple revolvers;
- Eyepieces: 10x/ 22mm;
- Planochromatic and semi-apochromatic IOS objectives;
- Standard Magnification: 40x-600x;
- Condenser: N.A. 0.30 with iris diaphragm.
