Visible/Ultraviolet Spectrophotometers

UV-VIS Spectrophotometry is defined as an analytical technique capable of determining the presence and/or concentration of an analyte of interest, based on measurements of absorption/transmission of electromagnetic radiation, in the ultraviolet and visible regions of the electromagnetic spectrum.

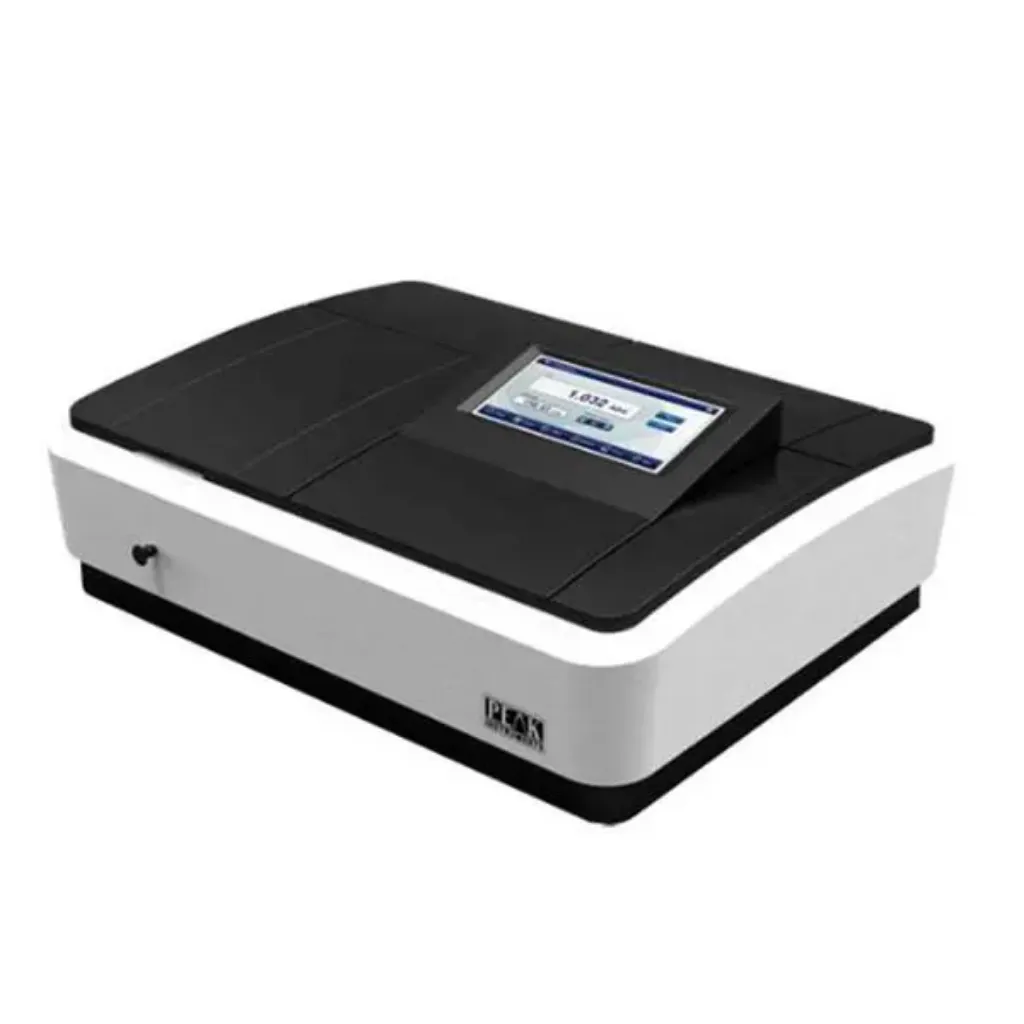

DUAL BEAM UV-VISIBLE SPECTROPHOTOMETER
The dual-beam UV-visible spectrophotometer has a color touch panel and control via internal microprocessor or PC (USB and RS232 ports , software not included). 1200 lines/mm Littgow optical system, with silicon photo-diode detector. Manual cuvette holder for 2 cuvettes (1 sample, 1 reference) with 1 cm of light passage. Automatic wavelength adjustment and measurement of parameters: absorbance, transmittance, kinetics, quantitative, sweep and energy. Different dual-beam and single-beam models available.

Specifications:
- Wavelength range: 190-1100 nm, with an accuracy of ± 0.3 nm;
- Variable band width from 0.5 nm, 1 nm, 2 nm, 4 nm, 5 nm;
- Photometric range: -0.3 to 3 Abs. / 0-200% T;
- Photometric Accuracy: ±0.2% T;
- Photometric repeatability: ≤ 0.15% T;
- Diffused light: ≤0.05% T;
- Noise: ± 0.001 Abs/h, 500 nm 0A;
- Includes 4 glass cuvettes, 2 quartz cuvettes and supports semi-micro cuvettes;
- Dimensions (WxLxH): 77 x 63 x 34 cm.


DUAL BEAM UV-VISIBLE SPECTROPHOTOMETER
The dual-beam UV-visible spectrophotometer has a color TFT screen and is controlled via an internal microprocessor or PC (USB and RS232 ports, software not included). 1200 lines/mm Littgow optical system, with silicon photo-diode detector. Manual support for 2 cuvettes (1 sample, 1 reference) with 1 cm of light passage. Automatic wavelength adjustment and measurement of parameters: absorbance, transmittance, kinetics, quantitative, sweep and energy. Different dual-beam and single-beam models available.

Specifications:
- Wavelength range: 190-1100 nm, with an accuracy of ± 0.3 nm;
- Bandwidth of 2 nm;
- Photometric range: -0.3 to 3 Abs / 0-200% T;
- Photometric Accuracy: ±0.2% T;
- Photometric repeatability: ≤ 0.15% T;
- Diffused light: ≤0.03% T;
- Noise: ± 0.001 Abs/h, 500 nm 0A;
- Includes 4 glass cuvettes and 2 quartz cuvettes and supports semi-micro cuvettes;
- Dimensions (WxLxH): 77 x 63 x 34 cm.


SPECTROPHOTOMETERS
Spectrophotometers with LCD screen, with manual adjustment of the wavelength and automatic calibration of 0%A and 100%T. Manual support for 4 cuvettes with 1 cm of light passage. Measured parameters: absorbance, transmittance, concentration and quantitative. Software with quantitative analysis functions, automatically created concentration calibration curves, and dynamic measurements. This series of spectrophotometers includes visible spectrophotometer and Ultraviolet spectrophotometer model.

Specifications:
- Wavelength range according to different models: 320-1020 nm or 190-1020 nm, with an accuracy of ± 2 nm;
- Bandwidth of 4 nm;
- Photometric range: -0.3 to 3 Abs / 0-200% T;
- Photometric Precision: 0.5% T;
- Photometric repeatability: ≤ 0.2% T;
- Scattered light: < 0.15% T@360 nm;
- Noise: ± 0.002 Abs/h at 500 nm 0A;
- Includes 4 glass cuvettes, plus 2 quartz cuvettes in the Ultraviolet spectrophotometer model support semi-micro cuvettes;
- Dimensions (WxLxH): 53 x 46 x 32 cm.


SPECTROPHOTOMETER FOR MICROPLATES
The microplate spectrophotometer uses optical system with photo-diode detector and monochromator to offer a wide range of wavelengths including the UV-visible range. The optical system allows you to run assays on microplates from 6 to 384 wells quickly and efficiently. It incorporates a high-tech incubator for precise temperature control and complex agitation movements. Readings can be performed from: end point, kinetics, spectral scan and area scan. The spectrophotometer is supplied with a Tablet PC for better connectivity through Wi-Fi and Bluetooth, allowing quick access to different measurements and results.

Specifications:
- UV-visible reading of microplates from 6 to 384 wells;
- Wavelength range: 185-1000 nm, with an accuracy of ± 1 nm;
- Bandwidth of 5 nm;
- Photometric range: 0-4 Abs;
- Photometric Accuracy: ± 1% from 0 to 2 Abs, ± 3% from 2 to 2.5 Abs;
- Photometric repeatability: ± 1% from 0 to 2 Abs, ± 3% from 2 to 2.5 Abs;
- Dimensions (WxLxH): 39.6 x 36.4 x 20.7 cm.
