Vortex Mixers For Plates And Tubes

Compact vortexers for tubes and/or microplates with stirring speed control.

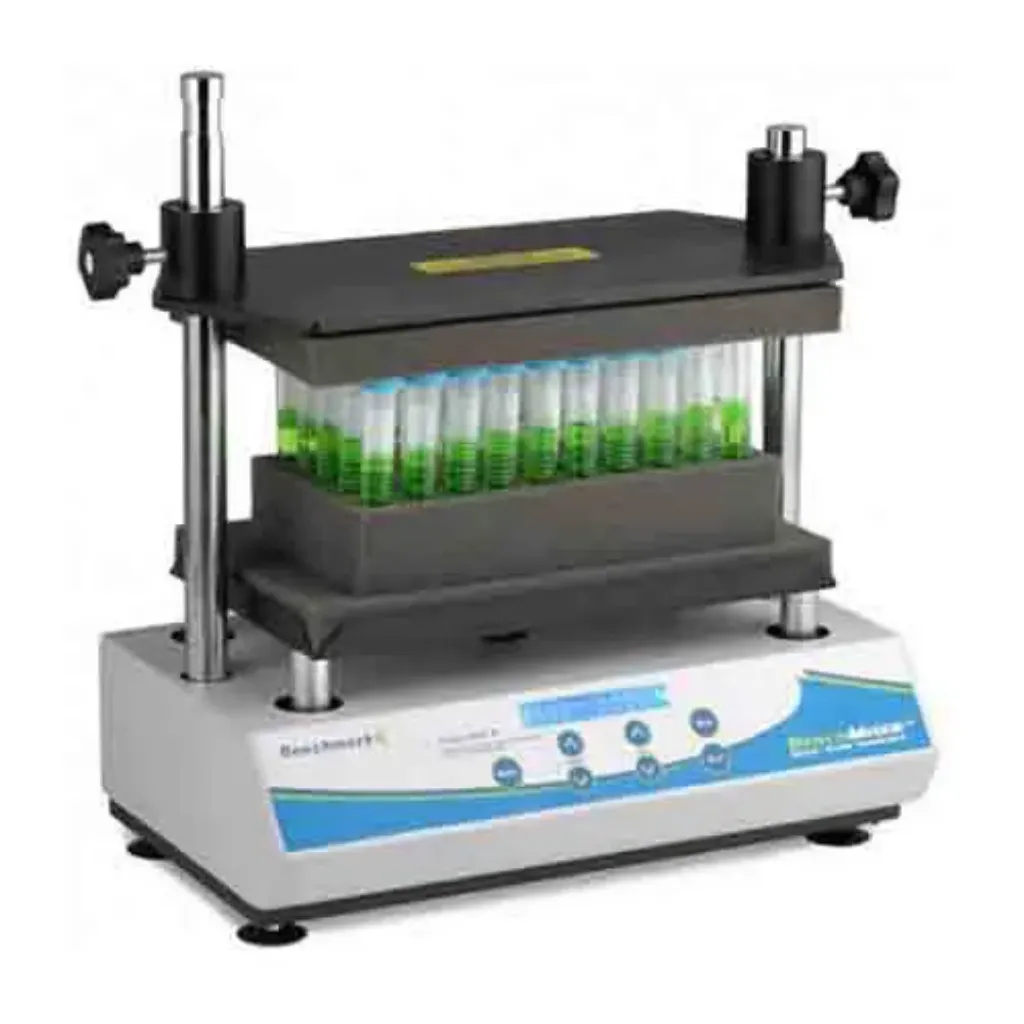

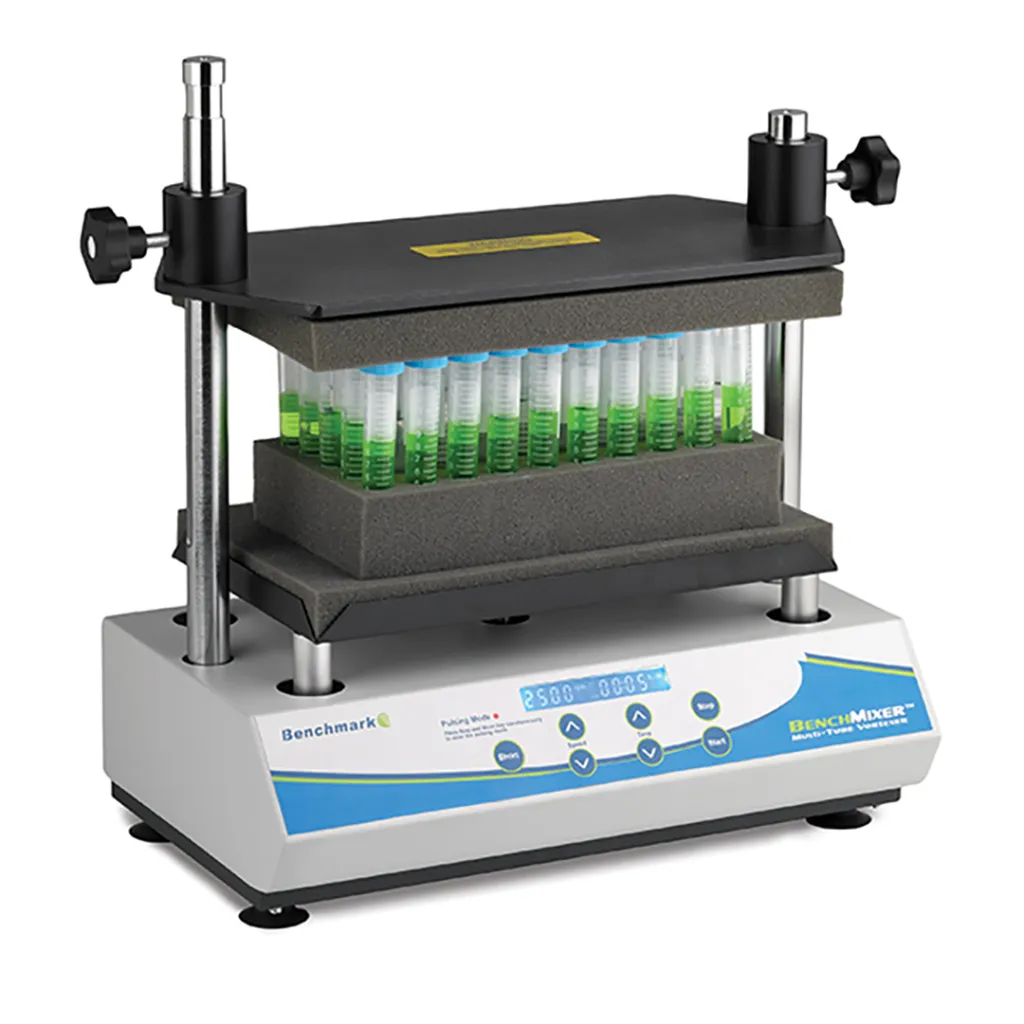

MULTI TUBES VORTEX WITH HIGH CAPACITY
Vortex agitator with powerful, silent and small size mechanism. It has a programmable pulse function and there is no need for manual intervention for agitation: it mixes agitation speeds at specific time intervals. Its large motor delivers accurate, reproducible speeds up to 2500 rpm, operating without jerk and minimal vibration.

Specifications:
- Includes rack for 50 x 12 mm tubes;
- Adjustable stirring speed from 500 to 2500 rpm;
- Orbit diameter of 3.6 mm;
- Timer from 1 min to 99h99 min.;
- Dimensions (WxLxH): 23.5 x 28.5 x 42 cm.


VORTEX AGITATOR FOR PLATES AND TUBES
Vortex agitator with a powerful motor with long life that provides efficient mixing, with circular orbital movement. Able to vortex a single tube or several or even microplates, changing the head of the equipment. An optimized counterweight allows the vortex mixer to be light and stable during performance. The variable speed makes this equipment useful for a variety of applications, from gentle mixing to pellet resuspension. Safe equipment for use in a cold room or in an incubator.

Specifications:
- Manual operation by pressure or continuous;
- Stirring speed up to 2850 rpm;
- Orbital shaking with a radius of 3 mm;
- Agitation of tubes or microplates;
- Dimensions (WxLxH): 14 x 16 x 13 cm.


VORTEX TUBE SHAKER
Ideal equipment for gentle resuspension mixing of cells and liquid biological and chemical components in tubes. This vortex can work in two modes, in continuous operation or in impulse operation.

Specifications:
- Manual operation by pressure or continuous;
- Adjustable vibration speed from 750 to 3000 rpm;
- Orbit diameter of 4 mm;
- Dimensions (WxLxH): 15x 8 x 9 cm.
