Laboratory Deep Freezers

Freezers and deep-freezers (with min. temperatures up to -86ºC) vertical and horizontal.

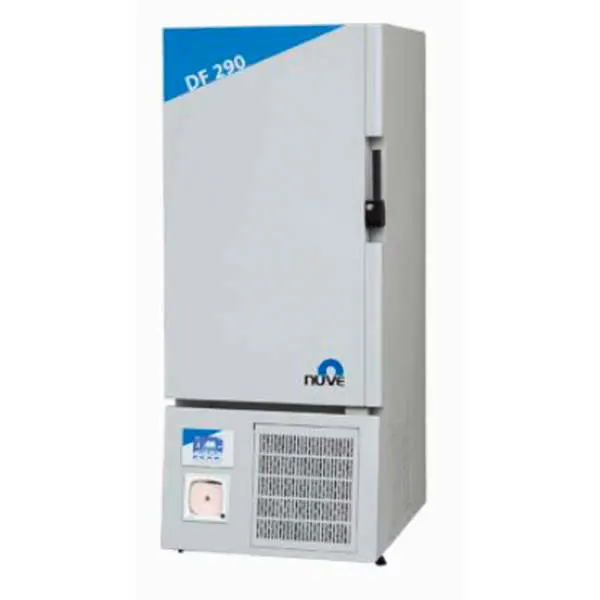

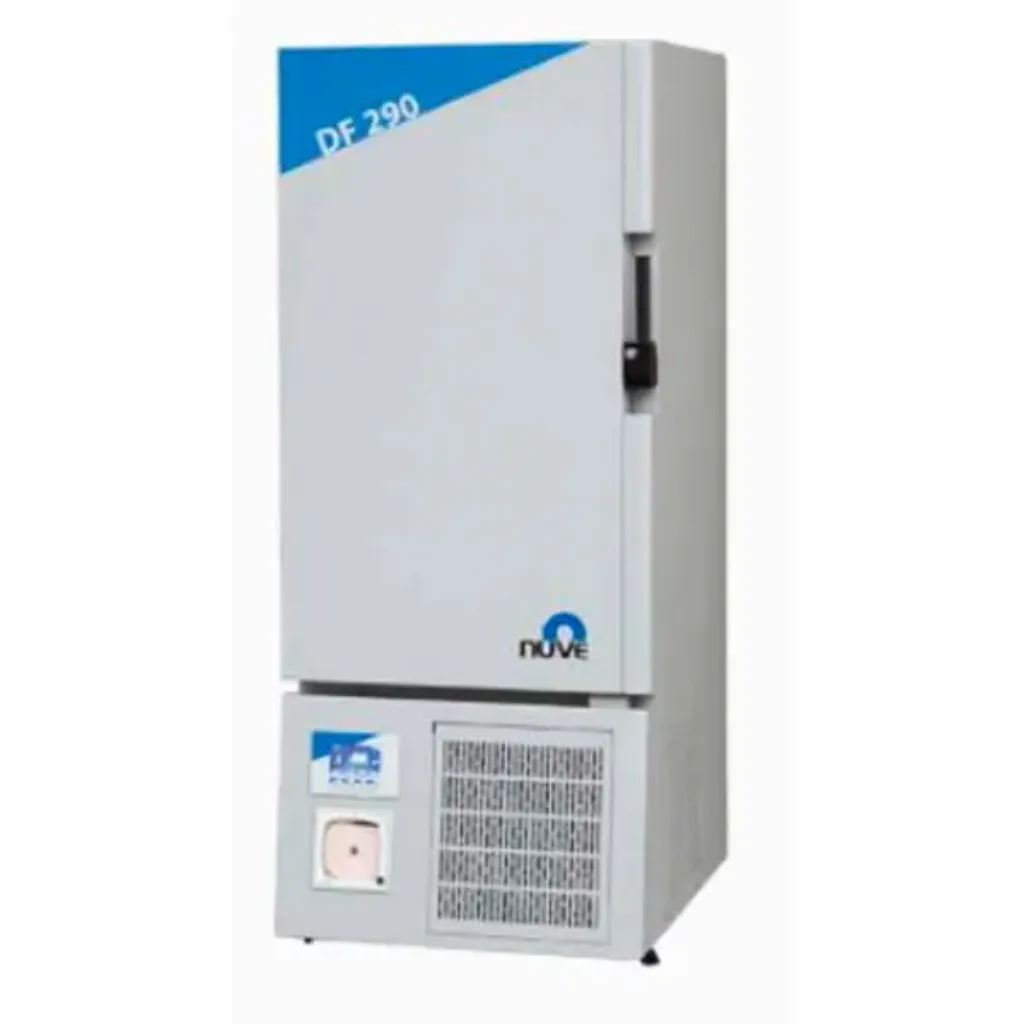

VERTICAL FREEZER TO -86ºC
Vertical deep-freezer with ultra-fast freezing with the “JetFREEZE” system in which the refrigeration elements are inside the chamber and in the 4 independent compartments with insulated doors. With color LCD screen, PC connection via USB port, reliable control system (N-SmartTM). Stainless steel chamber with shelves with built-in cooling coils ensures excellent temperature uniformity and stability across all samples, allowing you to confidently compare samples. Faster and more efficient freezing than conventional freezers that only use air convection. Optimized recovery time after opening a door. Customized racks and drawers available and maximum security for high value samples with the presence of alarms, passwords, key access.

Specifications:
- Minimum temperature of -86°C, at 20°C ambient;
- Temperature uniformity of ±3°C;
- Temperature stability of ±0.5°C;
- Chamber volume of 560L (up to 40,000 cryovials), optional; 260/455L models available;
- Energy consumption of 1600 W;
- Weight of 312 kg;
- Dimensions (WxDxH): external 82 x 112 x 203.5 cm; internal 55.5 x 77 x 132 cm.


VERTICAL FREEZER AT -41ºC

Vertical deep-freezer with ultra-fast freezing with the “JetFREEZE” system in which the refrigeration elements are inside the chamber and in 3 independent compartments with insulated doors. With color LCD screen, PC connection via USB port, reliable control system (N-SmartTM). Stainless steel chamber with shelves with built-in cooling coils ensures excellent temperature uniformity and stability across all samples, allowing you to confidently compare samples. Faster and more efficient freezing than conventional freezers that only use air convection. Optimized recovery time after opening a door. Customized racks and drawers available and maximum security for high value samples with the presence of alarms, passwords, key access.

Specifications:
- Minimum temperature of -41°C, at 30°C ambient;
- Temperature uniformity of ±3°C;
- Temperature stability of ±0.5ºC;
- Chamber volume of 260L (up to 18,000 cryovials), optional; 455/560L models available;
- Energy consumption of 900 W;
- Weight of 210 kg;
- Dimensions (WxDxH): external 68 x 97.5 x 163 cm; internal 42 x 63 x 99.4 cm.


HORIZONTAL FREEZER AT -60ºC
Horizontal freezer with unique Danfoss patented compressor system (CFC-free) with a minimum temperature of -60ºC. Stainless steel chamber with microprocessor control, digital thermostat with alarm and wheels with locking system to move the equipment. It uses a mixture of two hydrocarbons as a refrigerant and has a capacity of 481L. Various models are available that differ in particular in terms of dimensions and capacity.

Specifications:
- Temperature range from -30°C to -60°C;
- Temperature stability of ±0.5°%;
- Chamber volume of 481L), optional; 130/ 226/ 300/ 360L models available;
- Daily energy consumption of 9.2 kWh;
- Weight of 95 kg;
- Dimensions (WxDxH): external 170.5 x 65.5 x 86.5 cm; internal 154 x 49 x 67 cm.


HORIZONTAL FREEZER AT -45ºC
Horizontal freezer with patented single Danfoss compressor system (CFC-free) with minimum temperature of -45°C. Aluminum chamber (stainless steel, optional) with microprocessor control, digital thermostat with alarm and wheels with locking system to move the equipment. It uses R290 as a refrigerant, has an energy efficiency index of 40.4% and a capacity of 416L, 81 cryobottles of 2mL each. Various models are available that differ in particular in terms of dimensions and capacity.

Specifications:
- Temperature range from -10ºC to -45°C;
- Temperature stability of ±0.5°%;
- 416L chamber volume, optional; 130/ 226/ 300/ 360/ 455L models available;
- Daily energy consumption of 2.55 kWh;
- Weight of 80 kg;
- Dimensions (WxDxH): external 170.5 x 65.5 x 86.5 cm; internal 150 x 45 x 65 cm.
