Power Supplies - electrophoresis

Complete electrophoresis systems with integrated modules for PAGE (polyacrylamide gel electrophoresis), FIE (isoelectric focusing), electroblotting and western blotting performance. Separate modules of: horizontal and vertical electrophoresis gel trays; opaque cellulose acetate cuvettes for detection and quantification of DNA damage and repair in individual cells in genetic toxicity and carcinogenicity tests; blotting units; image acquisition and analysis (gel documentation system, transilluminators); power supplies.


FULL HORIZONTAL ELECTROPHORESIS SYSTEM
Ideal system for standard preparation techniques (sample separation and purification) and horizontal electrophoresis analytical techniques. This system includes a compact buffer tank that can be connected to a peristaltic pump for buffer recirculation, four different sized gel trays each with two aluminum casting gates, color coded combs (1, 1.5 and 2 mm thick), colored markers for better detection of the well to be filled, transparent UV tray to visualize the gel without risk of damage due to handling, 2 combs of thickness 1, 1.5 or 2 mm with 10 to 30 wells/samples . Accessories for flexible gel molding are available.

Specifications:
- Includes compact buffer tank, magazines for 30 samples maximum, gel trays with aluminum casting gates and colored loading strips; colored well markers, clear UV tray;
- Buffer volume of 950 mL;
- Maximum capacity (samples) of 180 mL;
- Does not include power supply;
- Recommended running voltage: 75 to 150V;
- Dimensions of the gel (4 trays) (LxL): 15 x 7 cm; 15 x 10cm; 15 x 15cm; 15 x 20cm;
- Unit dimensions (WxDxH): 31.5 x 19 x 7 cm.


COMPACT HORIZONTAL ELECTROPHORESIS SYSTEM
Compact, complete and ideal system for personal use, small laboratories or classrooms. It has a power supply, horizontal tub with safety lid, 2 trays of different sizes, double-sided combs, tray accessories. Valid for one 10.5 x 10 cm gel, one 10.5 x 6 cm gel or two 5 x 6 cm gels. Quick and easy gel molding and trays feature a dark contrast stripe to help visualize wells during filling and bands that fluoresce under UV and blue light to track the progress of the run. The safety lid of the bowl is vented to help dissipate heat during electrophoresis and has a viewing area above the gel. Current will only pass through the system when the lid is properly placed.

Specifications:
- Includes power supply, tub and tray accessories;
- System valid for one or two gels;
- Buffer volume of 230 mL;
- Timer from 0-99 min or continuous;
- Recommended running voltage: 35V, 50V or 100V preset and customizable;
- Dimensions (WxDxH): 19 x 13 x 5.5 cm.


POWER SOURCES
Robust and durable electrophoresis power supply. This series has five versions, has a low current mode suitable for FIE applications and continuous recording combined with a real time clock so that it is possible to obtain an overview of the races, including possible downtimes in case of mains power failures. They work with constant current, voltage and power, with automatic crossover. Automatic recovery after power failure and remote control via connection to a computer. More series models available with lower power. It is an excellent choice for blotting, multiple horizontal and vertical gels. It has four outputs allowing running four gels in parallel and with memory for 9 programs.

Specifications:
- Source with 4 outputs for 4 gels simultaneously;
- Output voltage up to 6000V;
- Output current up to 150 mA;
- Output power up to 300W;
- Timer from 1 to 99:59 h with alarm or continuous;
- Dimensions (LxDxH): 31 x 26 x 13 cm.


RACK WITH CURRENT TAKE FOR 3 POWER SOURCES
Compact and cost-effective power supply that can power two gel tanks simultaneously. Easy to program, ideal equipment for electrophoresis and blotting for DNA, RNA and proteins. Stackable in a rack of up to 3 units due to its reduced size and ergonomic design, ensuring optimal air circulation. Each unit has a built-in timer, can run on constant voltage or current with automatic crossover and no-load detection.

Specifications:
- Rack for 3 units and each unit supplies power to two gel tanks simultaneously;
- Output voltage from 10 to 300V;
- Output current from 10 to 400 mA;
- 60W output power;
- Timer from 1 to 999 minutes with alarm or continuous;
- Input voltage from 100 to 240V;
- Unit dimensions (WxDxH): 14 x 19.1 x 8.4 cm.

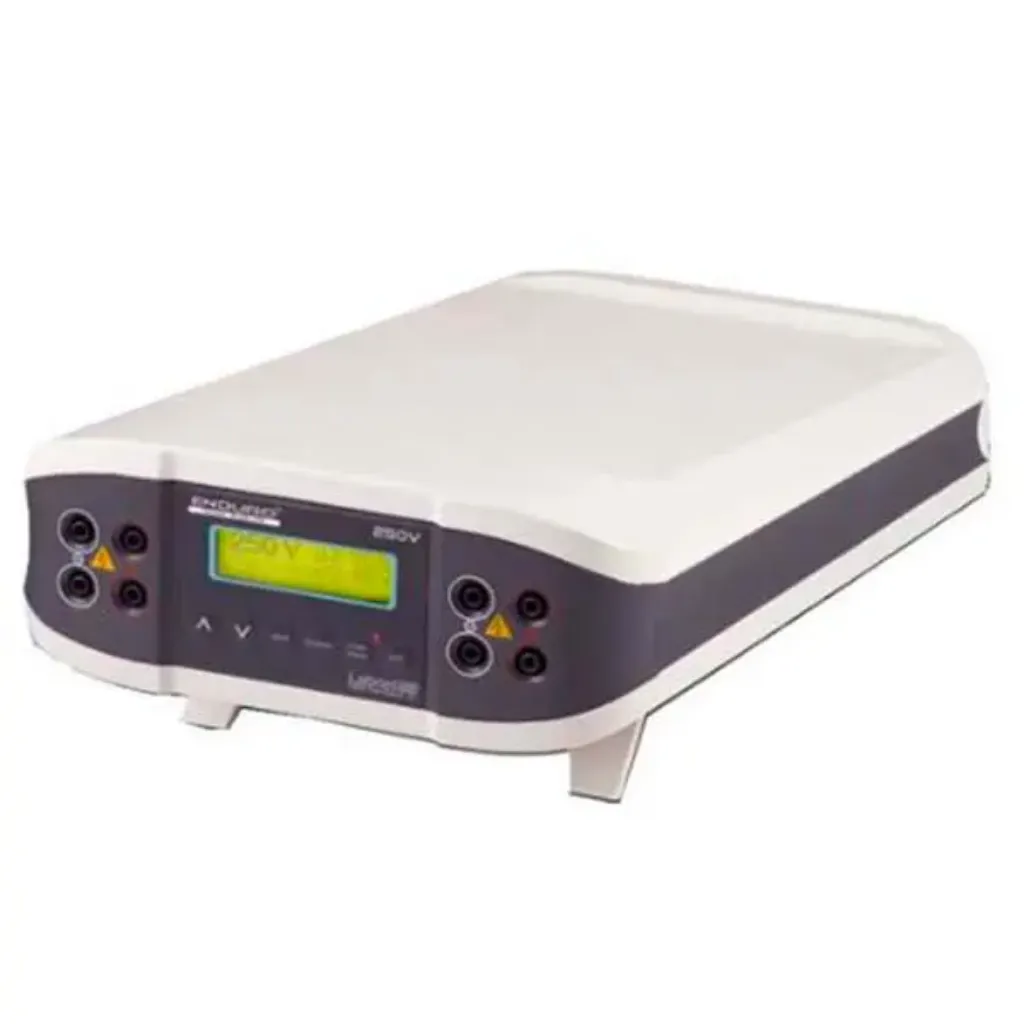

POWER SUPPLY
Power supply with built-in timer and four outputs allowing to run four gels in parallel. Easy programming of power, voltage or constant intensity with automatic crossover. Presence of security measures such as no-load detection, alarm or restarting in case of power failure. Memory for 20 programs. More models available with different features.

Specifications:
- Source with 4 outputs for 4 gels simultaneously;
- Output voltage: 5 to 250V;
- Output current: 10 to 3000 mA;
- Output power up to 130W;
- Timer from 1 to 999 minutes with alarm or continuous;
- Input voltage: 120 to 230V;
- Dimensions (WxDxH): 19 x 25 x 8 cm.
